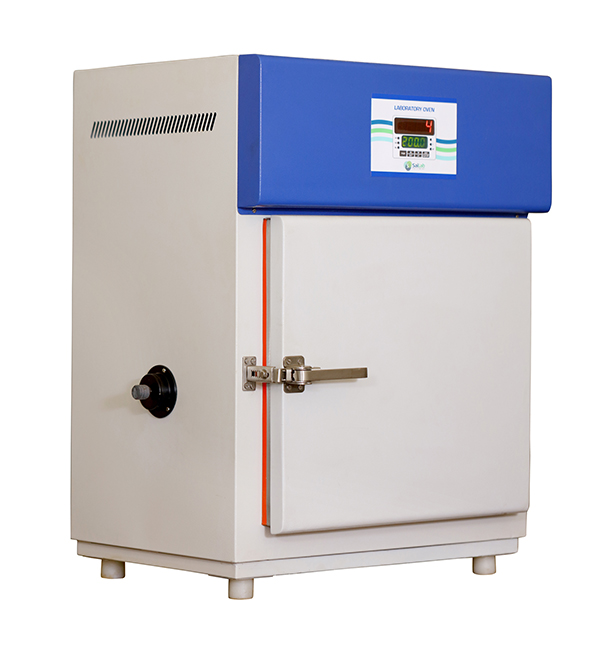

Memmert Type Hot Air Oven

We are the leading Manufacturer of Memmert Type Hot Air Oven

Sailab's Memmert Type Hot Air Ovens are industry-recognized for their sturdy construction and functional accuracy. With a temperature range between 5° and 250°C, the oven has a triple-walled construction. Having high-quality compressed glass wool insulation between the walls stops heat energy from escaping. To further strengthen the door of the oven is a fully insulated door with a gasket. The inside chamber is perforated for air circulation & uniform distribution of temperature inside the chamber.

TECHNICAL SPECIFICATIONS

  • Temperature Range: 5°C above ambient to 250°C.
  • Temperature Accuracy: ± 1°C.
  • Triple walled construction
  • Standard Model: Inner made of Stainless Steel – 304 & Exterior of MS sheet duly powder coated.
  • GMP Model: Inner and Outer Body with Stainless steel 304
  • High quality compressed glass wool insulation between walls to prevent heat – loss.
  • Fully insulated door with gasket for perfect sealing.
  • Automatic Microprocessor based PID Temperature Controller with Digital Indicator & PT – 100 sensors and timer.

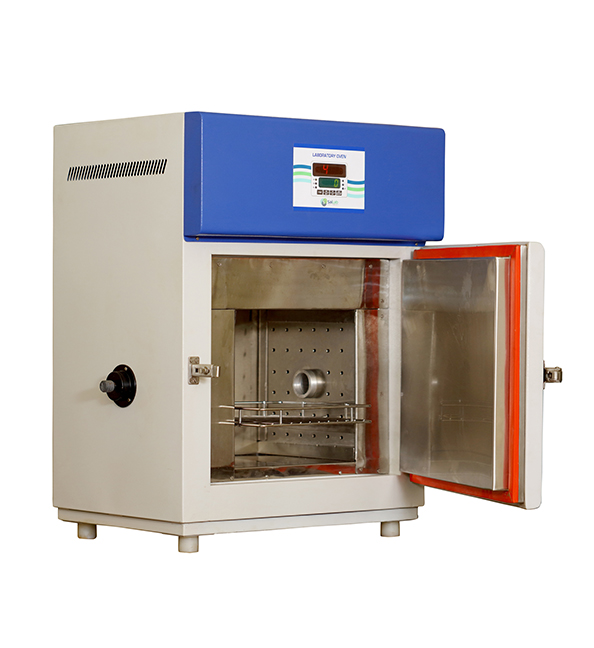

  • Inner chamber perforated for Air Circulation & uniform distribution of Temperature inside the chamber. Air circulation by motorized blower for uniform distribution of Temperature inside the chamber. Available SS rod trays with Chrome Plating.

COMMERCIAL DETAILS OF MEMMERT TYPE HOT AIR OVEN

Model STD & GMP Volume in Liters Chamber (Size in Inches) Watts
SMO - 03 30 12” x 12” x 12” 1250
SMO - 04 45 14” x 14” x 14” 1450
SMO - 09 90 18” x 18” x 18” 1750
SMO - 12 120 18” x 18” x 24” 2000
SMO - 21 215 24” x 24” x 24” 2500
SMO - 32 325 24” x 24” x 36” 3500
SMO - 42 425 60” x 60” x 120” 4000
SMO - 60 600 68” x 75” x 120” 5000
SMO - 80 800 80” x 80” x 125” 6000
SMO - 100 1000 85” x 88” x 135” 7000

Documentation

We Will Provide Guarantee Card, Test Reports, Operating Manual and Controller with Pt100 Sensor Calibration Certificate and Traceability Reports
