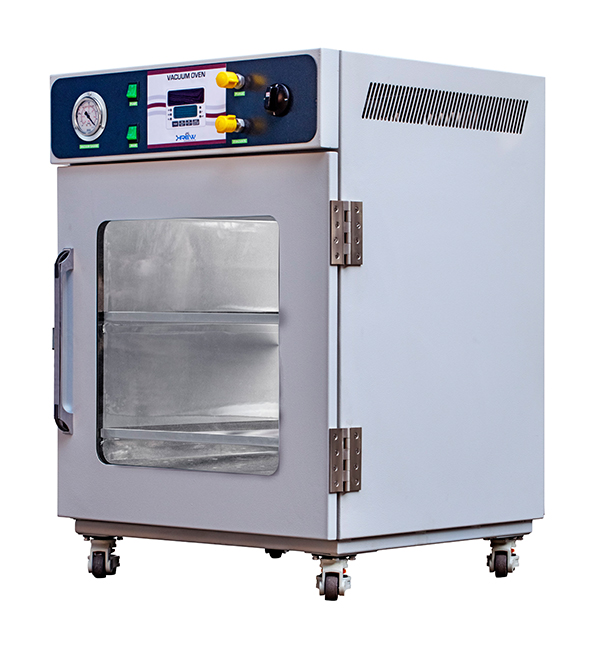

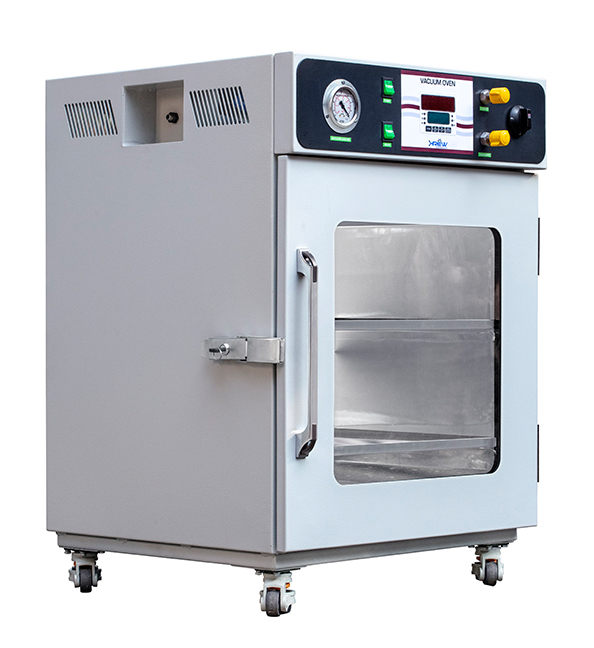

Vacuum Oven

Sailab, Leading Vacuum Oven Manufacturer in India

Sailab's vacuum ovens have been useful with applications in laboratory research. The oven door is airtight to prevent the energy from escaping and has a strong glass to observe the items inside. The drying takes place under a vacuum or in controlled conditions by introducing inert gas. The vacuum pump is certified I.S.I And Calibrated Against E.R.T.L(W) Standards. The oven is insulated with high-grade glass wool insulation. With a non-volatile memory that is resistant to power failure. With a temperature controller, the vacuum oven is fitted with an indicator that alerts via timer and alarm in case of temperature deviation.

Model No. Liter Capacity Rating Watts Inner Chamber No. of Shelves
SVO27 27 1750 30 x 30 x 40 2
SVO40 40 2000 35 x 35 x 45 3
SVO90 90 2250 45 x 45 x 60 3

TECHNICAL SPECIFICATIONS :


Design & Scope

The vacuum Oven Is Manufactured and Tested to Suit. The Specifications Given In I.S.I And Calibrated Against E.R.T.L(W) Standards


Construction

The Chamber Is Double Walled 304 quality Stainless Steel Inside and Outer Side Mild Steel with Powder coated. (Std Model). 316 quality Stainless Steel Inside and Outer Side 304 Quality Stainless Steel. (GMP Model). Inside Mirror Polished and Outer Side Mate Finished. Max Vacuum 760mm of mercury supplied without vacuum Pump.

Temperature Controller and details

By Preset Digital Auto tune PID Temperature Controller, Indicator with timer and alarm

Temperature Range Ambient 5°C up to 250°C
Temperature Accuracy Accuracy ±1°C
Temperature Uniformity ± 2°C
Temperature Sensor Pt100 (RTD)

Memory Backup

Retention of PID And Set Values in The Built in Non-volatile Memory In Case OfPower Failure and Automatic Re-Execution Of Control On Power Resumption.


Heating System

heating element placed at Outer surface inner chamber


Alarm System

Provided Alarm System for Temperature Variation and Power Failure


Insulation

Special grade glass wool Insulation.


No of Trays

3 Nos with Adjustable


Door System

Door with silicone rubber gasket to close the door properly. Door fitted with Toughened Glass window for inner observation.


Safety Features

- MCB For Mains Supply

- Safety Controller for high temperature cut off all heater (thermostatically)


Power Supply

230 VAC,50Hz Single Phase.


Documentation

We Will Provide Guarantee Card, Test Reports, Operating Manual and Controller with Pt100 Sensor Calibration Certificate and Traceability Reports


Vacuum PUMP FOR Vacuum OVEN

Vacuum Pump Oil Free

Model No. TID75-S
Max Flow ( Ltrs/Min) 45
Max Vacuum (inch) 27”
Max Press (PSIg) 55
Appox Weight (kg) 9.0
Motor HP ¼
Approx, Dimension (MM) 290 x 120 x 180

To create vacuum up to 700MM/HG
