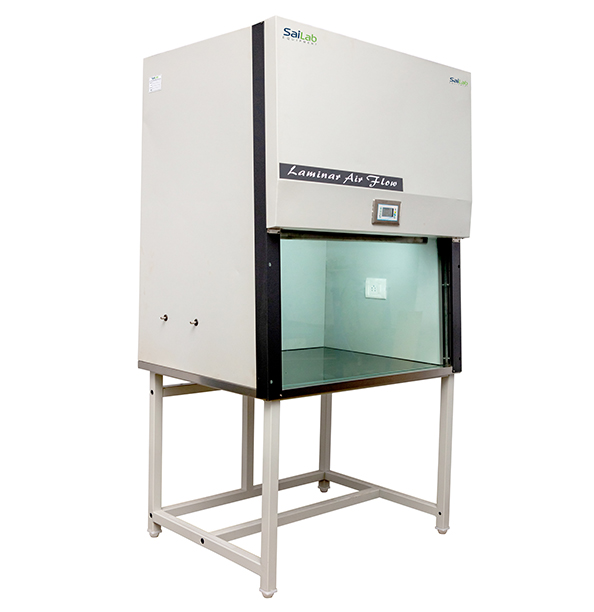

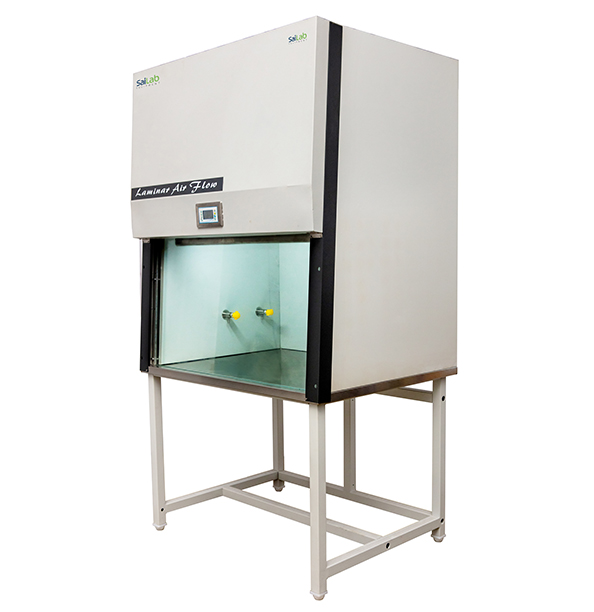

Sailab's Laminar Air Flow is designed to prevent the contamination of clinical or laboratory objects from unwanted and foreign particles. The MS Powder-Coated stainless body has a HEPA filter that allows air distribution via straight layers. With sliding doors and transparent glass panels, it makes it easy to view objects. The pre-filter is not washable and must be replaced occasionally. The filter retains particles up to 0.3 microns and runs with low sound.
| Model Nos. | Vertical Laminar Air Flow Size |
|---|---|
| SLF-2 | 2 x 2 x 2 ft |
| SLF-3 | 3 x 2 x 2 ft |
| SLF-4 | 4 x 2 x 2 ft |
| SLF-5 | 5 x 2 x 2 ft |
| SLF-6 | 6 x 2 x 2 ft |
| Sr. no. | Description | Specification of The Equipment |
|---|---|---|
| Name of the Equipment | Laminar Air Flow | |
| 1. | Main Body | MS Powder Coated |
| 2. | Work Zone | Completely in Stainless Steel (304) |
| 3. | Height Of the stand | 650 mm |
| 4. | Filter Type | HEPA Filter |
| 5. | Efficiency | 99.99% |
| 6. | Particle Retention | 0.3 Micron |
| 7. | Pre-Filter | Disposable, Non washable polyester fiber |
| 8. | Cleanliness | Class 100 |
| 9. | Ultra violet tube light | Class 100 |
| 10. | Of surface Illumination work | Fluorescent tube light |
| 11. | Blower-motor assembly | Dynamically balanced |
| 12. | Static pressure measurement | Magnehelic Gauge |
| 13. | Air flow velocity | : 0.3 – 0.5 m/s |
| 14. | Noise level | : 65 decibels |
| 15. | Front Sash | Shattered Proof Glass Door |
| 16. | Power | Works on 230 V AC single phase 50Hz |
| 17. | Standard Model | Inner made of Stainless Steel – 304 & Exterior of MS sheet duly powder coated. |
| 18. | GMP Model | Inner and Outer Body with Stainless steel 304 |
